Sensitive variable-speed control pedal perfectly matches MgcSTEM PWM motor controllers to deliver smooth stepless speed regulation for a great riding experience.

• This variable speed pedal is firm and durable, using Hall device to collect pedal angle position without contact;
• The output range is wide, the pedal position angle change range is 0~30 degrees, and the corresponding output voltage is 1V~4V;

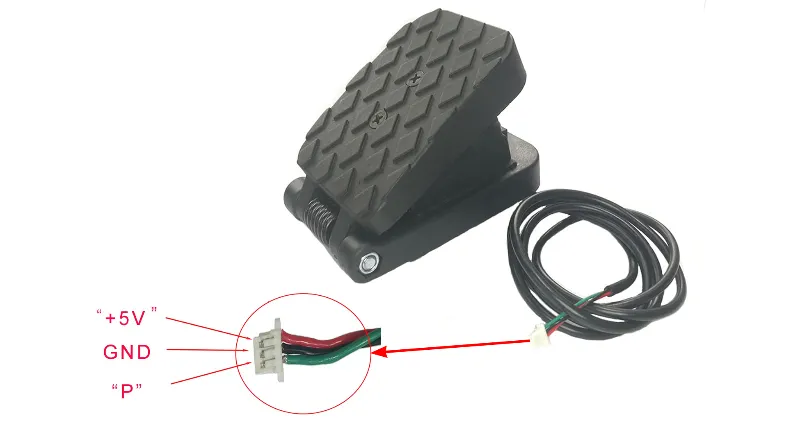

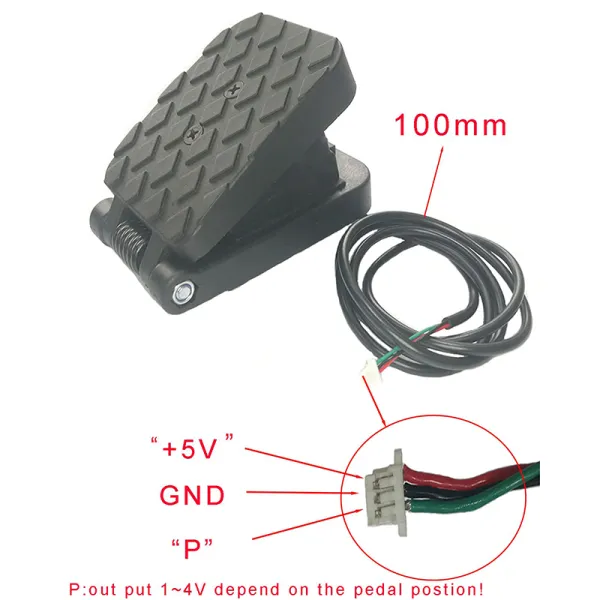

• The length of the pedal signal line is 1 meter, using the sh1.0-3 interface, the red is +5V input, the black is GND, and the other color is the output voltage signal (1~4v);
• The physical interface and electrical interface of this pedal have been optimized for compatibility and matching with the pwm module (2.0A/2.0B) we sell on amazon, and can be directly used together to achieve variable speed control.
• When this pedal is connected to pwm 2.0B, please make sure to re-power on the pwm module to ensure that the pwm module recognizes the pedal. (The pwm module only detects if a variable speed pedal is plugged in every time it is powered on)

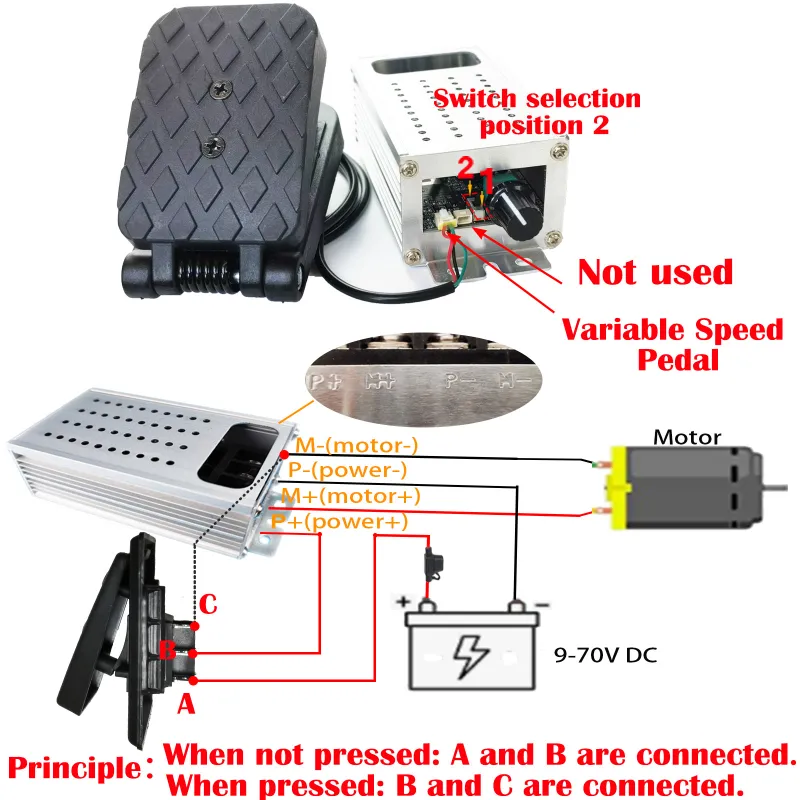

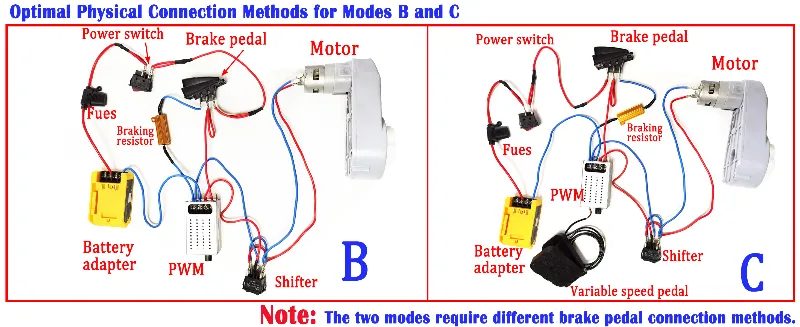

For PWM 2.0A Module

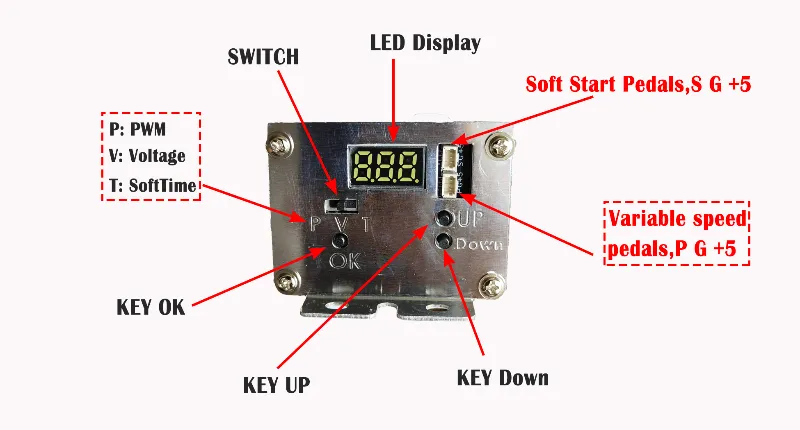

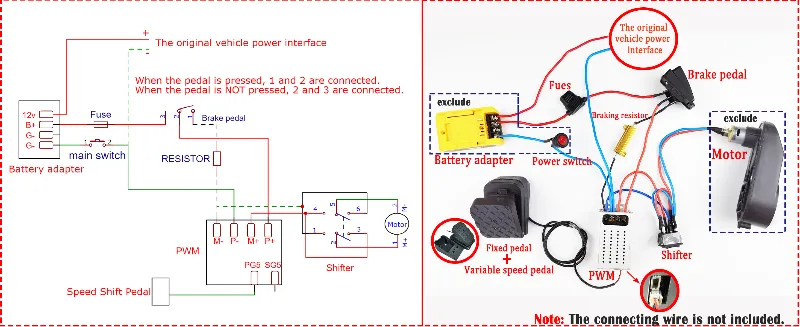

For PWM 2.0B Module

To help you check authentic customer reviews of this item, we also sell this identical product on Amazon. Feel free to click the link below to view real feedback from buyers, same genuine product with consistent quality.

Amazon link:https://mgcstem.pse.is/8e7hm5

After-sales Email: mgcstem@outlook.com

Facebook: Mgcstem

If you encounter any problems, please feel free to contact us via our after-sales email. We will provide you with a satisfactory reply. Thank you!
